Hp Dc7900 Ram Slots
Operating System: Microsoft Windows Vista Home Recommended Use: Business Processor: Intel Core 2 Duo, 3 GHz Motherboard: -Bus Speed: 1333 MHz -Video Output Interface: PCI Express Memory: -RAM Technology: DDR2 SDRAM -Installed RAM: 2 GB -Max Supported RAM: 16 GB -Number of Memory Slots: 4 x 240 Pin DIMMs -Supported RAM Speeds: 800 Mhz -Installed Cache Memory: 6 MB Hard Drive: -Hard Drive Capacity: 160 GB -Hard Drive Interface: Serial ATA II -Hard Drive Rotation Speed: 7,200 RPM -Controller Type: Serial ATA II DVD-RAM Networking: -Networking Type: Integrated 10/100/1000 Network Card -Data Link Protocol: Ethernet • Fast Ethernet • Gigabit Ethernet
Company Size
- S
- M
- L

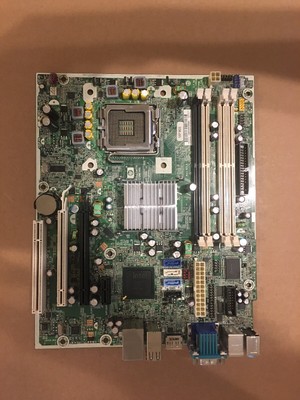

My HP DC7900 has 2 Channels with 2 slots each.Currently have 1gb ddr2 667 in slot 1 and same in slot 3.Total 2gb.I would like to increase to 3gb total.I see the options as add 1gb to slot 2 or add 512MB to slot 2 and 512mb to slot 4. Which would be the better option? I understand WINXP 32 BIT will only read 3gb? So any more RAM would be pointless?
- The Computer has 4 Slots to install memory, already with basic factory installed standard memory installed. For best Business Desktop DC7900 CMT/MT/SFF Computer performance use the maximum amount of 16GB, fill all the slots with the max allowed memory per slot for your Computer. What is the warranty on these memory?
- This RAM is listed by Kingston for the DC7900 SFF. Based on the information that you posted, the memory should work. I noticed that the DC7900 SFF that you are using has the INTEL E8500. I didn't know that this model PC had that processor when shipped. The E8500 has a much faster FSB compared to other Intel processors listed for the DC7900 SFF.
- HP Item model number DC7900 Hardware Platform PC Operating System Windows 10 Pro Item Weight 18 pounds Product Dimensions 14.9 x 13.3 x 3.95 inches Item Dimensions LxWxH 14.9 x 13.3 x 3.95 inches Processor Brand Intel Processor Count 2 Computer Memory Type DDR2 SDRAM Hard Drive Interface Ethernet 100Base-T.
- HP Compaq Business dc7900 (Core 2 Duo E8500 3.16GHz, 2GB RAM, 160GB HDD, Vista Business) overview and full product specs on CNET.
IT Pro Reviews of HP Inc. dc7900 Small Form Factor
- 2-in-1
- 4K Resolution
- AMD
- ARM
- All-in-One
- Android
- Backlit Keyboard
- Bluetooth
- Built-In Microphone
- Chrome OS
- Discrete GPU
- ENERGY STAR Certified
- Front-Facing Camera
- HDMI Output
- Headphone Jack
- Intel
- LCD Display
- LED Display
- Linux
- Mac
- Multi-Touch
- Numeric Keypad
- Point of Sale
- Rack mounted
- Rugged
- SD Card
- SSD
- Small form factor
- Smartphone
- Thin client
- Touch screen
- Tower
- VGA Output
- Wi-Fi 1 (802.11b)
- Wi-Fi 2 (802.11a)
- Wi-Fi 3 (802.11g)
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Windows
- iOS
Fast facts | |
---|---|
Processor type | Intel® Core™2 Duo processor E8400 • 3.00 GHz, 6 MB L2 cache, 1333 MHz front side bus |
Operating system installed | Genuine Windows Vista Business with downgrade to Windows XP Professional custom installed |
Upgradability | Windows Vista® capable*Windows Vista® Premium ready |
Supported applications | Windows Vista® Premium ready |
Cache external | 6 MB L2 cache |
Processor front side bus | 1333 MHz front side bus |
Chipset | Intel® Q45 Express |
Memory type | PC2-6400 DDR2 800 SDRAM |
Standard memory | 1 x 1 GB |
Maximum memory | 16 GB DDR2-Synch DRAM |
Memory slots | 4 DIMM |
Memory upgrade | Expandable to 16 GB through four industry-standard DIMM slots |
Internal drives | |
---|---|
Internal drives | 160 GB |
Hard disk drive speed | 7200 rpm |
External drive bays | 1 external 5.25 inch, 1 external 3.5 inch |
Optical drives | SATA DVD+/-RW 16x SuperMulti LightScribe |
Flexible disk drive | Optional 1.44 MB Diskette Drive |
Storage controller | SATA 3.0Gb/s |
Hp Dc7900 Ram Slots Drivers
System features | |
---|---|
Form factor | Small Form Factor |
Graphic subsystem name | Intel® Graphics Media Accelerator 4500 integrated graphics |
Video adapter, bus | PCI Express™ x16 |
Video adapter driver 01 | Microsoft® Windows® XP Home and Microsoft® Windows® Vista® Enterprise |
Video adapter features | 3D/2D Controller: support is fully compliant with Microsoft® standard API such as Microsoft DirectX®9, DirectXVA®, VMR9, GDI/GDI+; OpenGL® 1.4.; Integrated VGA Controller; Integrated 400 MHz RAMDAC; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth: 32 bits/pixel; Multi-display Support: dual monitor support facilitated via one VGA port and one DisplayPort integrated on the back plane of the system board and presented as part of the rear I/O set of interfaces |
Graphic subsystem video card memory | Graphics memory is shared with system memory. Graphics memory usage can vary from 8 to 512 MB depending on the amount of system memory installed and system load |
Graphic subsystem video card resolution | Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536 |
Expansion slots | 1 low-profile PCI, 2 low-profile PCI Express x16, 1 low-profile PCI Express x1 |
Audio | Integrated HD audio with ADI1884 codec, internal PC speaker |
Network interface | Integrated Intel® 82567LM Gigabit Network Connection |
Network cards | Optional Intel® Pro 1000 PT PCIe Gigabit NIC |
Available LAN drivers | Microsoft® Windows® Vista®, Microsoft® Windows® XP |
External I/O ports | Rear: 6 USB 2.0, 1 serial port, 2 PS/2, 1 RJ-45, 1 VGA, 1 DisplayPort, audio in/out; Front: 2 USB 2.0, audio ports; Optional: 2nd serial port, 1 parallel port |
Pre-installed software | Optional preloaded software, only for certain configurations: Microsoft® Office 2007 Basic, Microsoft® Office 2007 Professional, Microsoft® Office 2007 Small Business, Microsoft Internet Explorer with Google Toolbar |
Software included | On some models only (not included with FreeDOS): HP ProtectTools Security Software Suite Version 4.0, HP Power Manager, HP Firefox Virtual Browser, HP Backup and Recovery Manager, HP Insight Diagnostics Software (available via HP Backup and Recovery Manager), Computer Setup Utility, McAfee AntiVirus trial version, Roxio Creator Business 10 or DVD 10 or Easy Media Creator 9.0, Intervideo WinDVD 8 LE, PDF Complete |
Keyboard | HP PS/2 Standard Keyboard |
Pointing device | HP PS/2 2-Button Optical Scroll Mouse |
Security management | Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Smartcard Keyboard |
Physical security | Kensington Lock, Solenoid Hood Lock / Sensor, HP 2008 (SFF) Wall Mount/Security Sleeve |
Product dimensions (W x D x H) | 33.7 x 37.8 x 10.0 cm |
Product weight | 8.5 kg |
Keyboard dimensions (metric) | 16.3 x 45.8 x 2.5 cm |
Power features | Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; with Energy Efficient Power Supply: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50 kg-cal/hr) Maximum 1260 btu/hr (318 kg-cal/hr); System Heat Dissipation 80 Plus: Typical 150 btu/hr (38 kg-cal/hr), Maximum 1024 btu/hr (258 kg-cal/hr; Power Supply Fan: 80 mm variable speed, Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC): <2.7 W |
Power consumption | 240 watts maximum |
Power requirements | Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (85% High Efficiency) |
Energy efficiency compliance | 85PLUS Power Supply |
Storage temperature range (Celsius) | -30 to 60° C |
Operating humidity range | 10 to 90% RH |
Non-operating altitude | 9,144 m |
Non-operating humidity | 5 to 95% RH |
Operating altitude | 3,048 m |
Operating temperature range | 10° to 35° C |
